Dr.Thermal Cooler Round-up

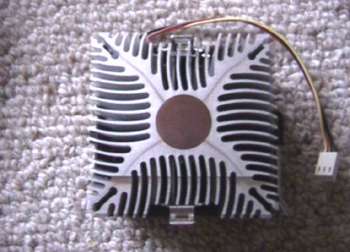

This cooler seems to have created much talk in the last couple of weeks, so lets see what it’s all about. The cooler has the shape of a square but the same design still remains. The V77L has a copper core with Aluminum fins in the outer rim. The V77L does not look very big at all, and in fact it’s the smallest in terms of height of the other two coolers tested. Here are the specs of the TI-V77L for better understanding.
* Cooler Dimension 73.8×73.8x46mm
* Weight 276.5g
* Fan Dimension 70x70x15mm
* Bearing System Ball Bearing Syetem
* Rated Voltage DC12V
* Speed(RPM) 3800
* Noise Level(dBA) 34
* Air Delivery(CFM) 32.73
* Clip Attach Force(LBS) 19.5±3
* Thermal Resistance(°C/W) 0.4

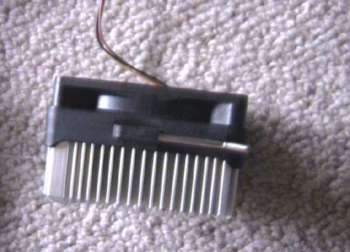

The cooling fan included with the V77L doesn’t look that impressive at first glance, however looking at the specs this 3800R.P.M fan almost produces 33CFM of air, which is quite impressive. For all those people looking for a decent cooling fan which is silent, then here’s a good option right here.

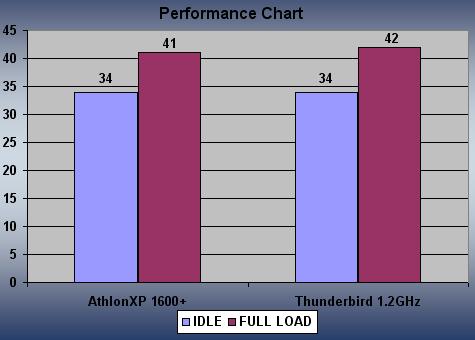

Time to see what this baby can do…
Test setup and methodology is the same as before.
