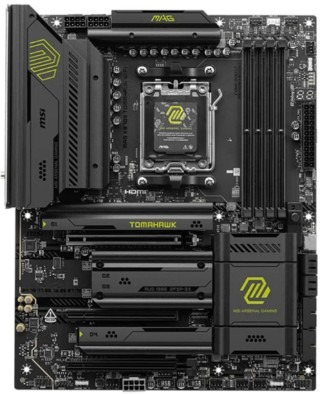

MAG X870E Tomahawk Wi-Fi Motherboard Review

Finding a motherboard that delivers flagship features without the flagship price tag feels nearly impossible these days. At just $300, the MSI MAG X870E Tomahawk WiFi changes that equation entirely.

This board packs USB4 support, Wi-Fi 7, lightning-fast M.2 sockets, and solid gaming performance into a package that costs hundreds less than competitors with similar specs. Consequently, it has become one of the most talked-about AM5 platforms for builders who refuse to compromise on future-proofing.

Specifications And Package Contents

MSI built the MAG X870E Tomahawk WiFi around AMD’s X870E chipset, which brings full support for Ryzen 9000, 8000, and 7000 series processors through the AM5 socket. The dual-chipset architecture inherent to X870E boards provides enhanced connectivity compared to standard X870 variants, a distinction that becomes apparent when examining the board’s expansion capabilities.

AMD X870E Chipset Features

The X870E platform delivers PCIe 5.0 support for both graphics cards and M.2 storage devices, setting it apart from budget-oriented chipsets. This board supports AMD EXPO memory profiles and includes RAID configurations ranging from 0, 1, 5, to 10 for NVMe drives, though RAID 5 functionality requires Ryzen 9000 series processors. Integrated graphics output comes through one HDMI 2.1 port and two DisplayPort connections via USB-C.

Power Design: 14-Phase CPU, 2-Phase SOC

Powering demanding processors requires serious delivery infrastructure. MSI equipped this board with a 14+2+1 Duet Rail Power System. The CPU receives 14 phases utilizing 80A Smart Power Stage MOSFETs from Monolithic Power Systems, specifically the MPS2433 model controlled by an MPS2412 chip. This configuration provides 1,120A of total power delivery, more than sufficient for flagship chips like the Ryzen 9 9950X even under Precision Boost Overdrive scenarios.

Dual 8-pin CPU power connectors feed the VRM alongside a supplemental 8-pin PCIe power connector, a feature typically reserved for high-end boards. The power phases dedicated to SOC (2 phases) and miscellaneous components (1 phase) round out the 17-phase total. An 8-layer PCB constructed with 2oz thickened copper and server-grade materials forms the foundation.

Memory Support: DDR5 Up To 8400 MT/s

Four DDR5 UDIMM slots accommodate up to 256GB of system memory. Memory speeds vary based on configuration: single DIMM per channel with single-rank modules can hit 8400+ MT/s, while single DIMM per channel with dual-rank tops out at 6400+ MT/s. Two DIMMs per channel with single-rank reach 6400+ MT/s, but dual-rank configurations across all four slots drop to 6400+ MT/s for Ryzen 9000 processors.

The board supports AMD’s EXPO overclocking profiles, dual-channel mode, and non-ECC unbuffered memory. Notably, CUDIMM support exists in clock driver bypass mode only, with compatibility varying by CPU series. JEDEC speeds span from 4800 to 5600 MT/s natively.

Storage: 4x M.2 And 4x SATA Ports

Storage flexibility stands out as a key strength. The first two M.2 slots connect directly to the CPU and support PCIe 5.0 x4 for Ryzen 9000 and 7000 series chips. M.2_1 accepts 22110 and 2280 drives, while M.2_2 handles 2280 and 2260 form factors. The remaining two M.2 slots route through the chipset at PCIe 4.0 x4 speeds.

A bandwidth-sharing caveat exists: M.2_2 and the rear USB4 40Gbps Type-C ports split PCIe 5.0 x4 lanes. Both run at PCIe 5.0 x2 when a drive occupies M.2_2, though BIOS settings allow forcing x4 mode at the cost of disabling USB4 ports. Four SATA 6Gb/s ports complement the M.2 array.

Form Factor And Dimensions

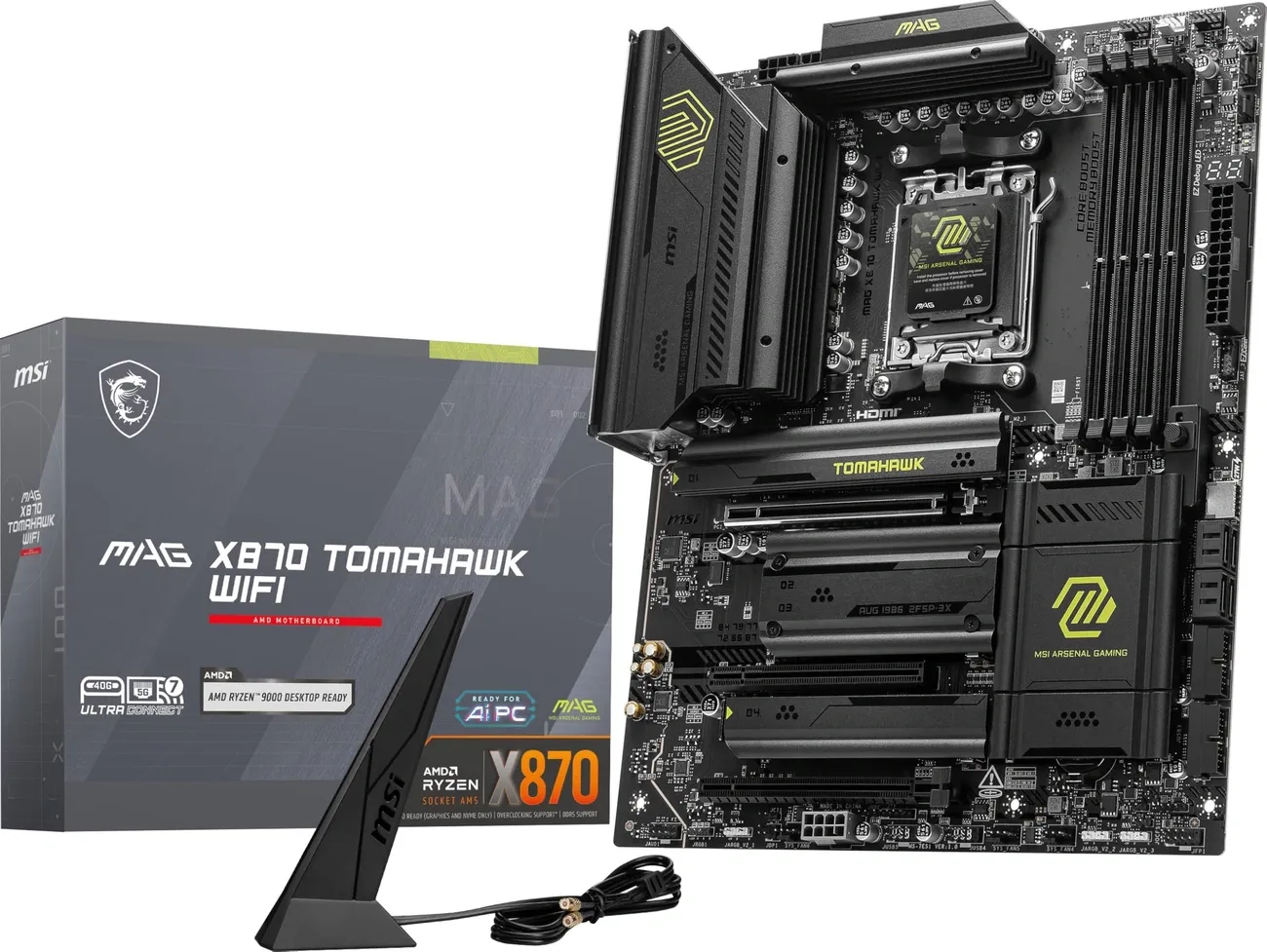

The ATX layout measures 243.84mm x 304.8mm (9.6 x 12 inches). MSI includes a comprehensive package: motherboard, installation guide, two SATA cables, M.2 clip remover tool, M.2 screws, USB drive with utilities, cable identification stickers, Wi-Fi antenna, and EZ connection cables for simplified front panel wiring.

Build Quality And Installation Experience

_{Image Source: MSI}

Assembling a PC on this board proved surprisingly straightforward, largely on account of MSI’s EZ DIY feature set that eliminates several traditional installation headaches.

ATX Layout And Component Placement

The board sits on a black 8-layer server-grade PCB that provides ample space for component routing. In the upper-left corner, dual 8-pin EPS connectors await power delivery, with only one required for standard operation. The 24-pin ATX connector occupies its usual position along the right edge, flanked by seven 4-pin fan headers distributed across the board. MSI positioned four EZ Debug LEDs near the ATX power connector, lighting up during POST to indicate any CPU, DRAM, VGA, or boot issues.

The audio section resides on the bottom-left portion as a fully exposed solution featuring the Realtek ALC4080 chip, complete with dedicated audio capacitors and signal isolation from other board components. Three ARGB headers spread across the right and bottom edges handle lighting control through MSI’s Mystic Light utility.

EZ DIY Features Overview

MSI’s installation conveniences start with a pre-installed I/O shield, eliminating the fiddly step of aligning and snapping a separate backplate into the case. The EZ M.2 system allows SSD installation and removal without screws through a simple physical release mechanism. Similarly, the EZ PCIe Clip enables single-tap GPU removal, streamlining upgrades considerably.

The EZ Antenna fasteners attach to the motherboard without rotation, and the EZ Conn header (JAF_2) consolidates front panel connections. This 7-pin or 11-pin connector accepts MSI’s own fans and liquid coolers, while an included 1-to-3 cable adapts ARGB lighting, system fans, and USB devices for those without MSI peripherals.

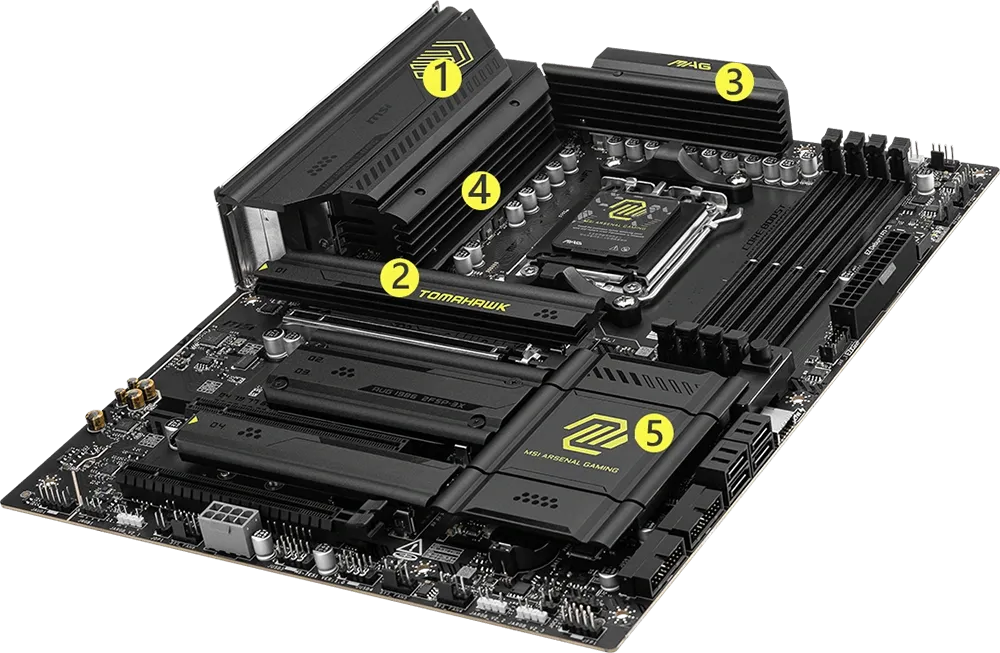

Heatsink Design And VRM Cooling

Matte-black Frozr Design heatsinks with MSI branding cover the power delivery, offering substantial surface area and mass. The heatsinks lack interconnecting heatpipes but compensate through deep fin design that boosts surface area. For the left VRM bank, the heatsink extends to the I/O shield and also cools the USB4 controller’s dedicated heatsink from above.

During extended stress testing with a Ryzen 9 9950X, the 14+2+1 power delivery never exceeded 50°C. This performance stems from adequate cooling combined with high-quality 7W/mK MOSFET thermal pads and additional choke thermal pads. The extended heatsink design maintains stable performance under heavy loads, cooling both MOSFETs and chokes effectively.

RGB And Esthetic Design Choices

Integrated RGB lighting doesn’t exist on this board, a deliberate cost-saving measure. Instead, MSI provides four RGB and ARGB headers for external lighting strips and devices. Bright yellow-green highlights break up the all-black appearance, featuring the MAG symbol and Tomahawk/Arsenal Gaming branding on heatsinks. While functional for a budget-oriented platform, some might expect more visual flair given the X870E designation.

Testing Results: Gaming, Productivity And Overclocking

Benchmarking this board with a Ryzen 9 9950X revealed performance characteristics that align with what you’d expect from a well-designed X870E platform, though the stock settings lean conservative.

Geekbench Single-Core And Multi-Core Scores

Geekbench 6 scores paint an interesting picture of how MSI configured this board’s default behavior. With PBO disabled and memory overclocking turned off, the single-core score hit 3076 while multi-core reached 15387. These results sit at the lower end of normal, indicating the board prioritizes stability over aggressive performance at stock settings. Enabling PBO and activating the memory’s EXPO profile pushed scores considerably higher to 3269 single-core and 18141 multi-core. Another test configuration achieved 3466 single-core and 23139 multi-core, demonstrating the platform’s capability when properly tuned.

Gaming Benchmarks: F1 24 And Cyberpunk 2077

Gaming performance proved competent across testing scenarios. The board delivered average scores in 3DMark benchmarks but exceeded expectations in actual game testing. During F1 24 and Cyberpunk 2077 runs at 1920×1080 resolution on Ultra settings, performance fell squarely in the middle of tested boards. Frame rate differences between motherboards remained minimal, typically within margin of error territory. Without a frame counter visible, most users wouldn’t notice performance variations between competing boards at this resolution.

Memory Overclocking: DDR5-7200 Testing

Memory compatibility showed mixed results depending on speed targets. The board successfully ran Team Group DDR5-7200 kits through 30-minute stress tests, but DDR5-8000 modules refused to cooperate. In particular, the power delivery maintained stable EXPO profiles with Crucial Pro memory at 6400 MT/s effective speed without issues. AMD’s optimal performance zone sits around 6000-6400 MT/s with tight timings at 1:1 ratio, as bandwidth gains diminish beyond this point except in specific memory-intensive workloads.

PBO And Precision Boost Overdrive Results

MSI’s PBO Enhanced feature offers three performance levels beyond standard Precision Boost Overdrive. Standard PBO typically delivers 3-5% performance gains, but PBO Enhanced pushes this to 3-15% depending on the specific Ryzen 9000 processor. The Ryzen 7 9700X saw the most substantial uplift at roughly 15% on PBO Enhanced 3. Moreover, MSI includes Set Thermal Point options that cap CPU temperatures at 65°C, 75°C, or 85°C, with the 85°C setting maintaining full performance while reducing temps by 3-4°C.

Power Consumption: 264W Peak At Load

System-wide power draw peaked at 264W during AIDA64 stress testing with all CPU cores at 100% load. Idle consumption sat at 80W, positioning the board squarely in the middle of tested competitors. The CPU itself maxed out at approximately 200W when configured properly. These figures represent total system consumption from the wall, excluding the monitor.

VRM Temperatures Under Stress Testing

VRM cooling performance exceeded expectations throughout extended torture tests. With a Ryzen 9 9950X under full load, the 14+2+1 power delivery never topped 50°C. Separate testing recorded VRM temps between 42-48°C during Geekbench runs, while another evaluation showed peaks at 54-55°C. The adequate heatsink design cooling both MOSFETs and chokes kept temperatures well within specifications even during hour-long stress tests.

Connectivity Suite And Future-Proofing

Modern computing demands extend far beyond processing power, requiring robust external connectivity that remains relevant for years.

Two USB4 40Gbps Type-C Ports

The rear panel features two USB4 ports capable of 40Gbps transfers with compatible devices. These ports enable multiple device connectivity through a single connection point and support dynamic bandwidth sharing across data, images, and video streams simultaneously. You can connect a USB-C compatible 8K display directly through either port. However, these ports share PCIe 5.0 x4 bandwidth with the M.2_2 slot, dropping both to PCIe 5.0 x2 when a drive occupies that socket. BIOS settings allow forcing M.2_2 to x4 mode, though this completely disables the USB4 ports.

Beyond USB4, the rear I/O delivers nine Type-A ports: four USB 2.0, three USB 3.0, and two USB 3.2 Gen 2 running at 10Gbps. An additional 10Gbps USB-C port rounds out the rear connectivity. The front panel header supports USB 3.2 Gen 2×2 at 20Gbps with 27W fast charging capability.

Wi-Fi 7 And 5Gbps Ethernet

Wireless connectivity reaches 5.8 Gbps through Wi-Fi 7 (802.11be), representing 2.4 times the speed of Wi-Fi 6/6E standards. The implementation uses 320MHz channel width on the 6GHz band and 4096-QAM modulation for enhanced transmission rates. Bluetooth 5.4 provides peripheral connectivity. Wired networking runs through a Realtek 8126 controller delivering 5Gbps Ethernet.

PCIe Slot Configuration Breakdown

Three full-length slots provide expansion capabilities. The top PCI_E1 slot connects through the CPU at PCIe 5.0 x16, reaching 128GB/s bandwidth through advanced SMT technology. The middle PCI_E2 slot runs PCIe 3.0 x1 from the chipset, while the bottom PCI_E3 operates at PCIe 4.0 x4.

Audio: Realtek ALC4080 With Headphone Amp

The Realtek ALC4080 codec delivers 7.1-channel audio with support for 32-bit/384kHz playback on the front panel. MSI integrated a dedicated headphone amplifier, isolated audio signal paths, and de-pop protection.

Should You Buy The MSI MAG X870E Tomahawk WiFi In 2026?

Value seekers looking to build an AM5 system will find this board hits a sweet spot that’s hard to ignore.

Pros: Value, Features, Performance

At just $300, this represents one of the cheapest X870E motherboards available. You get USB4 40Gbps ports, Wi-Fi 7, DDR5-8400 support, and capable 14+2+1 power delivery that handles flagship processors without throttling. The board performed well across gaming and productivity tests, while EZ DIY features simplify installation considerably. Future-proofing comes standard through modern connectivity standards that should remain relevant for three to four years.

Cons: Limited PCIe Slots For Dual GPU

The middle PCIe slot runs at 3.0 x1, which feels slow compared to competitors offering 4.0 x4 at minimum. More importantly, the lack of a second PCIe 5.0 x16 slot makes dual-GPU configurations impractical. PCIe slot enthusiasts requiring multiple high-bandwidth expansion cards should look elsewhere.

Best Use Cases And Recommendations

Mainstream gamers building systems they won’t upgrade for years benefit most from this platform. The board suits single-GPU builds paired with Ryzen 9000 series processors, especially when budget constraints prevent stepping up to $400+ alternatives.

The X670E predecessor lacks USB4 ports, ships with Wi-Fi 6E rather than Wi-Fi 7, and tops out at DDR5-7800 instead of 8400 MT/s. However, it includes an additional PCIe x1 slot the X870 version removed. Given minimal pricing differences between generations, the X870E offers better value for new builds.

Conclusion

The $300 asking price makes this board nearly impossible to beat for mainstream AM5 builders. USB4, Wi-Fi 7, DDR5-8400 support, and rock-solid VRM performance typically cost hundreds more on competing platforms. In fact, the EZ DIY features alone justify consideration for first-time builders who want a frustration-free experience.

I just wish MSI offered better PCIe expansion beyond that single 5.0 x16 slot. The limited secondary slots restrict multi-GPU configurations and high-bandwidth expansion cards considerably.

Overall, this motherboard delivers exactly what most gamers actually need rather than what marketing departments think we want. For single-GPU Ryzen 9000 builds prioritizing future connectivity over today’s esthetics, it’s the smart choice.
