CRU DataPort SecureDock

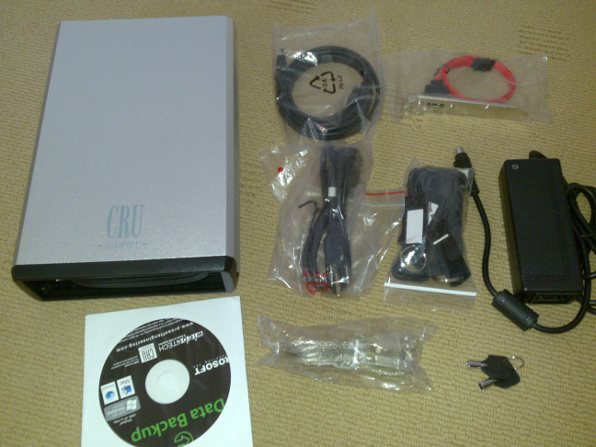

The CRU DataPort SecureDock is offered as a complete package to get you going and consists of the following:

1. DataPort 10 Carrier
2. Power supply and power cord (The power cord supplied seemed to be for the EU region. This can be easily changed to fit the Australian standard)
3. Cables: USB cable, eSATA cable, eSATA expansion back-plate, SATA cable
4. Unlocking keys
5. Security Tokens x 3
6. Screws
7. DataPort® 10 Secure (500GB Hard drive – Depends on model you purchase)

From the first looks the CRU DataPort SecureDock does not look any different to a standard hard drive enclosure. The top enclosure is made of aluminum and has CRU DataPort written on it. It’s slightly heavier than those standard generic enclosures you find, which could be attributed to the extra components built into the SecureDock and extra thickness of the aluminum casing.

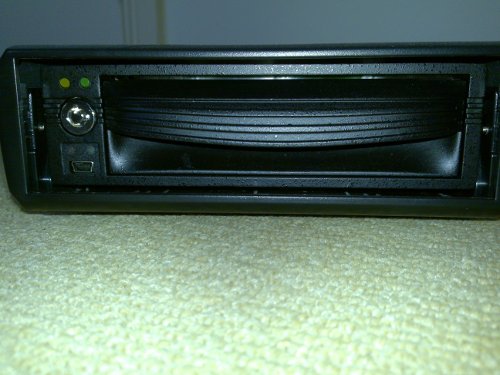

Looking at the front panel you’re offered with 3 LEDs for power, HDD activity and indicator to say whether the security token is plugged in or not. Furthermore there’s a key lock to ensure the drive cannot be removed by unauthorized personnel. The mini USB port you see in front can be misleading to some. It’s not for connecting an external drive; rather it’s to connect the security token (provided) to enable data access.

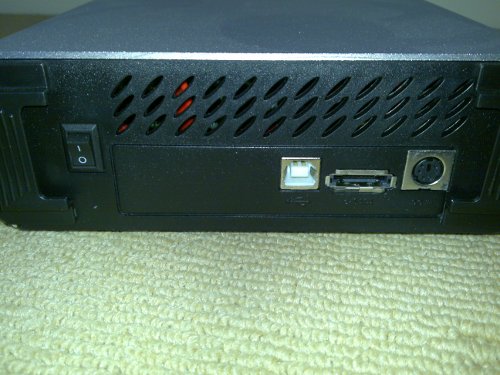

Going to the rear of the unit, you are offered with a USB and eSATA port, DIN type power connection port and a power switch.

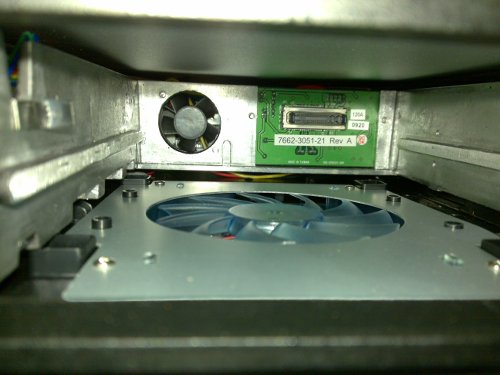

Taking a peek inside the secure dock you notice that they have installed two cooling fans, which is certainly a welcome feature considering how hot drives can get (especially if you’re running a 7200RPM hard drive). Furthermore you’ll notice the SATA port connector on the right hand side where the SATA hard drive connects to.

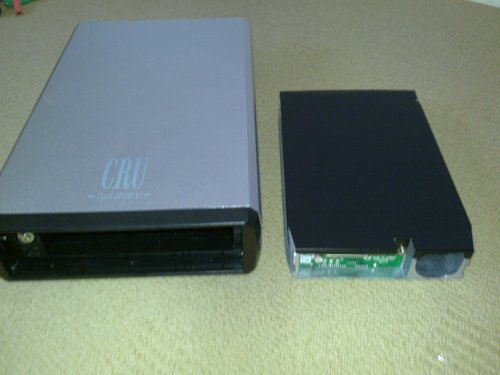

Here’s a view of the SecureDock side by side to the docking station. I’m quite impressed by the quality standards CRU-DataPort have maintained in producing this device. The Aluminum outer structure is considerably thick and provides adequate protection to a hard drive once installed.

Installation of the SecureDock is very straight forward. The unit we received came with a 500GB drive built in; however you can use any SATA drive upto 2TB in size.

Note that if you are not looking at mobility you can remove the SecureDock from its docking station and connect it directly to a 5 1/4 Drive bay.
